The Russia HZS120 double-line concrete batching plant project is aimed at engineering concrete supply where reliability, installation planning and stable aggregate handling matter. The Russia HZS120 project case provides real photos for buyers who need more than a catalogue rendering.
For colder or remote regions, the quotation should connect capacity, belt width, cement storage, foundation, power supply and after-sales service. A visible project reference helps buyers ask sharper questions before payment.
Why review the HZS120 model page
The HZS120 belt width 1000mm concrete batching plant specification helps buyers compare capacity, aggregate conveyor design and structural details. This matters when the project needs consistent engineering concrete instead of occasional small-batch supply.
Installation and risk checks
- Check foundation, site elevation, drainage and winter operating conditions early.
- Confirm conveyor protection, spare parts and control-room position.
- Review installation and commissioning proof before agreeing on the delivery plan.
- Use the case photos to discuss whether HZS90, HZS120 or HZS180 is the better long-term match.
Cold-region engineering priorities

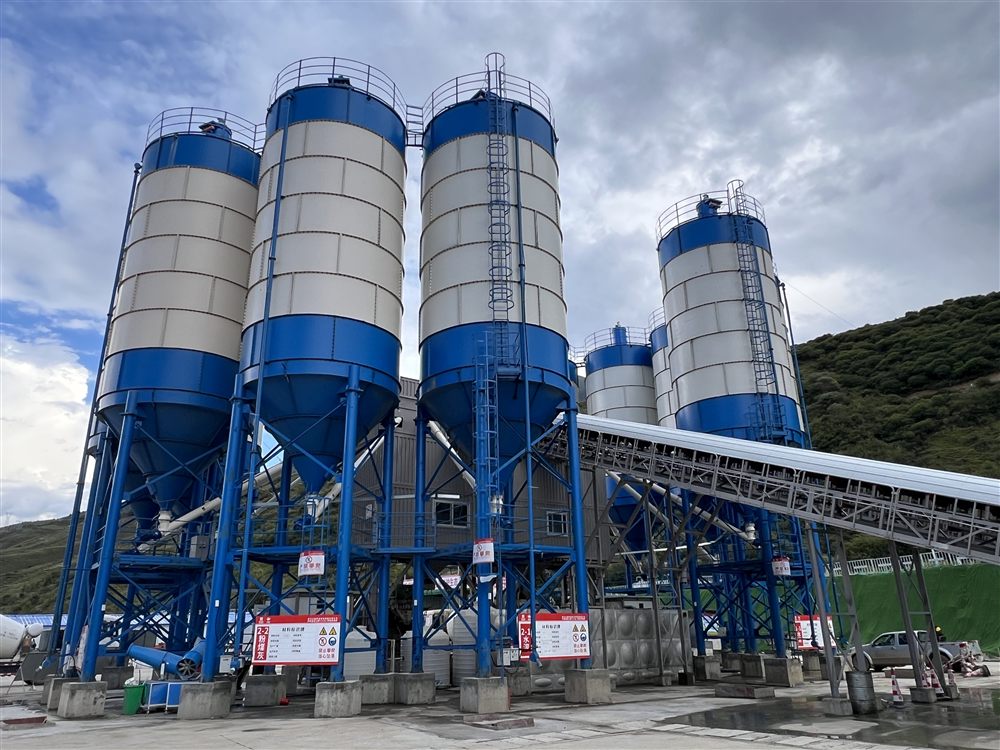

The project photos confirm the installed double-line arrangement, but cold-weather readiness must be checked from the equipment list and site design. Buyers should discuss insulation or heating for water and admixture systems, enclosed access where required, low-temperature electrical components, drainage that will not freeze and a startup procedure after long shutdowns. The required measures depend on the minimum design temperature and local operating practice.
Interpret the production figure correctly
HZS120 identifies a configuration class and theoretical production reference; it is not a promise that every recipe will leave the plant at that rate. A planning level near 70% during early commissioning may be realistic while the operator stabilizes aggregate feeding, moisture correction and dispatch. This is an industry planning reference, not a recorded result from this Russia site. Acceptance should use an agreed recipe and documented cycle test.
Why double-line control needs clear operating modes
The control system should support running either line separately and both lines together, with clear recipe ownership and material-routing interlocks. One skilled operator may supervise the batching screens during routine operation, but loader supply, truck movement, laboratory checks and maintenance are separate jobs. The project should define who can switch modes and how the remaining line operates safely during maintenance.
Concrete and fleet planning
Engineering concrete may include several strength classes or workability requirements. Recipe changeover, material temperature and delivery distance can be more important than maximum hourly output. Calculate mixer-truck quantity from the full route cycle and legal payload. If the project uses an onsite laboratory, define testing responsibility and reporting requirements instead of treating the laboratory building as automatic proof of concrete quality.
Documents that reduce winter startup risk
- Foundation reactions, embedded-part drawings and erection sequence.
- Cold-weather utility plan and local electrical component list.
- Calibration, no-load test and test-batch records.
- Winter shutdown, cleaning, lubrication and spare-parts instructions.
Next step for Russia project buyers
Compare the project with Mikkino's China concrete batching plant manufacturer guide, then send target city, winter requirements, power supply, daily demand, aggregate source and startup schedule through the quotation page.
